The Green Transformation of Waste Tires Deep Analysis and Application Prospects of Rubber Powder Grinding Systems
In the wave of global circular economy, the resource utilization of waste tires has become a prominent topic. Statistics show […]
In the wave of global circular economy, the resource utilization of waste tires has become a prominent topic. Statistics show that the United States generates about 300 million waste tires annually, and the European Union about 250 million, with only about 50% effectively recycled. As a core technology in this field, rubber powder grinding systems not only solve the environmental problem of “black pollution” but also provide high-value-added raw materials for industrial production. This article will deeply analyze the working principle, technical advantages, and broad application prospects of this system.
1.Technical Analysis of Rubber Powder Grinding Systems

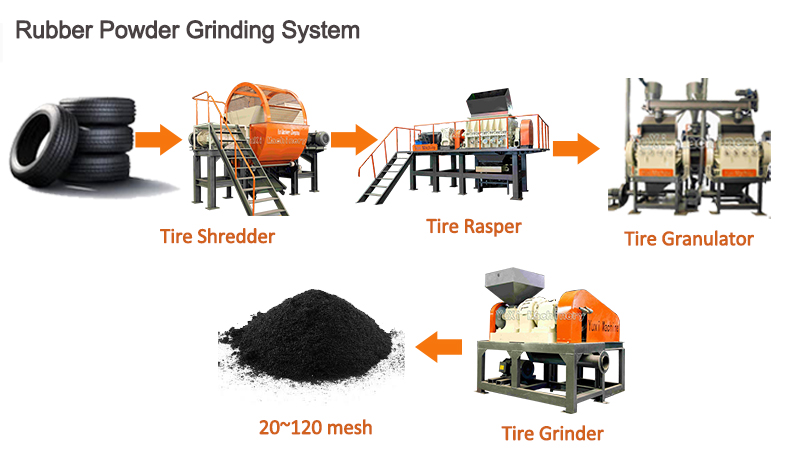

A rubber powder grinding system is an integrated solution mainly composed of five core pieces of equipment, forming a complete production line:
Tire Shredder: As the “first process” of the system, it crushes whole waste tires into uniformly sized rubber blocks. Using high-strength blades and a specially designed crushing chamber, it can handle various types of tires, including passenger car tires, truck tires, and steel radial tires. The crushing size can be adjusted according to subsequent process requirements, typically controlled at about 2–4 inches.
Steel Wire Separator: This is a key device for efficient separation of rubber and steel wire. Using unique physical separation technology, rubber and steel wire are completely separated through mechanical force and collision at specific angles. The separated steel wire has a purity of over 99% and can be directly recycled for steelmaking; rubber granules then enter the next process.
Granulator: After steel wire separation, rubber granules enter the granulator for further refinement. Through a combination of shearing, extrusion, and friction, rubber granules are processed into finer, more uniform particles, typically with a size of 0.08–0.2 inches. This process not only refines rubber granules but also effectively removes residual fiber impurities.
Rubber Mill: As the core component of the system, the rubber mill grinds fine rubber granules into rubber powder of different fineness. By adjusting the grinding gap and classification system, the fineness of the finished product can be flexibly adjusted between 20 and 120 mesh. An advanced water-cooled temperature control system ensures the equipment operates at room temperature, effectively extending its service life.
Supporting Systems: Including central dust collection systems, vibrating classifying screens, cyclone aggregators, fiber separators, and distribution boxes, ensuring efficient and clean operation of the entire system.
2.System Advantages and Technological Innovation
The advantages of rubber powder grinding systems lie not only in process integrity but also in technological innovation and excellent performance:
Modular Design: The system adopts a modular design and can be flexibly configured according to customers’ production scale and site conditions. The capacity range is wide, from 1,100 lbs/h to 22,000 lbs/h, meeting the needs of enterprises of different scales.
Efficient Separation Technology: The steel wire separator uses advanced physical separation technology, with high separation efficiency and low rubber loss rate, greatly improving raw material utilization.
Precise Grinding Control: The rubber mill is equipped with a precise classification system to ensure uniform particle size of the finished product and meet strict requirements of different application fields.
Environmental Protection and Safety: The central dust collection system effectively controls dust emissions and meets environmental requirements; the fully enclosed design and safety interlock device ensure operational safety.
Intelligent Control: Equipped with a PLC control system, it realizes automated control and real-time monitoring of the production process, making operation simple and maintenance convenient.
3.Application Prospects and Market Value
As a high-value-added industrial raw material, rubber powder has broad application prospects:
Road Engineering: Rubber powder is a key raw material for rubber asphalt and is used to produce high-elasticity, low-noise asphalt pavement. It can significantly improve the wear resistance, skid resistance, and crack resistance of pavement, extending road service life.
Construction Industry: Used in the production of waterproofing membranes, waterproof coatings, sealing materials, etc., providing excellent waterproof performance and durability.
Sports Venues: Used in the production of plastic running tracks, artificial turf infill, etc., providing a safe and comfortable sports environment.
Rubber and Plastic Products: As a filler or modifier, it is used in the production of various rubber products (such as sealing strips, hoses, shoe soles, etc.) and plastic products, improving product performance and reducing production costs.
Environmental Protection Products: Used in the production of sound insulation materials, shock-absorbing pads, geomembranes, and other environmental protection products, meeting modern society’s needs for green buildings and environmental protection projects.
4.Economic and Environmental Value
Rubber powder grinding systems not only bring significant environmental benefits but also create considerable economic benefits:
Environmental Benefits: For every 2,200 tons of waste tires processed, about 2,640 tons of carbon dioxide emissions can be reduced, about 4,400 tons of petroleum resources can be saved, equivalent to planting about 132,000 trees.
Economic Benefits: The system has low operating costs, and raw material costs are almost zero (waste tires are usually available for free or at low cost), while the market price of finished rubber powder is much higher than raw material costs, with a short investment payback period.
Social Benefits: It creates employment opportunities, promotes circular economy development, and enhances enterprises’ social image and brand value.
5.Future Development Trends
With continuous technological progress and growing market demand, rubber powder grinding systems will develop in the following directions:
Intelligence and Digitalization: Introduce artificial intelligence and big data technologies to realize intelligent optimization and predictive maintenance of the production process.
Finer Particle Size Control: Develop finer grinding technologies to meet the needs of high-end application fields for ultra-fine rubber powder.
Diversified Application Development: Explore the application of rubber powder in emerging fields such as 3D printing, composite materials, and biomedicine to expand market space.
Green Manufacturing: Further optimize processes, reduce energy consumption and emissions, and achieve true green manufacturing.
Rubber powder grinding systems are a key technology for the resource utilization of waste tires. They transform “black pollution” into “black gold” and make important contributions to environmental protection and the circular economy. With continuous technological innovation and the continuous expansion of application fields, this system will play an increasingly important role in future resource recycling, contributing to the construction of a beautiful Earth.
